Webhook | Bindplane

Webhook

Description

The Webhook destination allows you to send telemetry data to any HTTP/HTTPS endpoint.

Supported Types

Logs	Metrics	Traces	Bindplane Collector
✓	✗	✗	`v1.79.0`+

Configuration

Field	Type	Default	Required	Description
Scheme	string	http	`true`	The URL scheme to use for the webhook requests.
Hostname	string		`true`	The hostname or IP address of the webhook server.
Port	int		`true`	The port of the webhook server.
Path	string		`false`	The path component of the URL where telemetry data will be sent.
Verb	string	POST	`true`	The HTTP method to use for the webhook requests. Must be one of: POST, PATCH, PUT.
Content Type	string		`true`	The Content-Type header for the webhook requests.
Headers	map[string]string	["User-Agent": "bindplane-otel-collector/<version>"]	`false`	Additional HTTP headers to include in the webhook requests.
Enable TLS	bool	true	`false`	Whether or not to use TLS for HTTPS connections.
Skip TLS Certificate Verification	bool	false	`false`	Enable to skip TLS certificate verification.
TLS Certificate Authority File	string		`false`	Certificate authority used to validate TLS certificates.
Mutual TLS	bool	false	`false`	Whether or not to use mutual TLS authentication.
TLS Client Certificate File	string		`false`	A TLS certificate used for client authentication.
TLS Client Private Key File	string		`false`	A TLS private key used for client authentication.

Supported Retry and Queuing Settings

This destination supports the following retry and queuing settings:

Sending Queue	Persistent Queue	Retry on Failure
✓	✓	✓

Example Configuration

In this configuration, we specify the endpoint where telemetry data will be sent, along with TLS settings for secure communication.

Web Interface

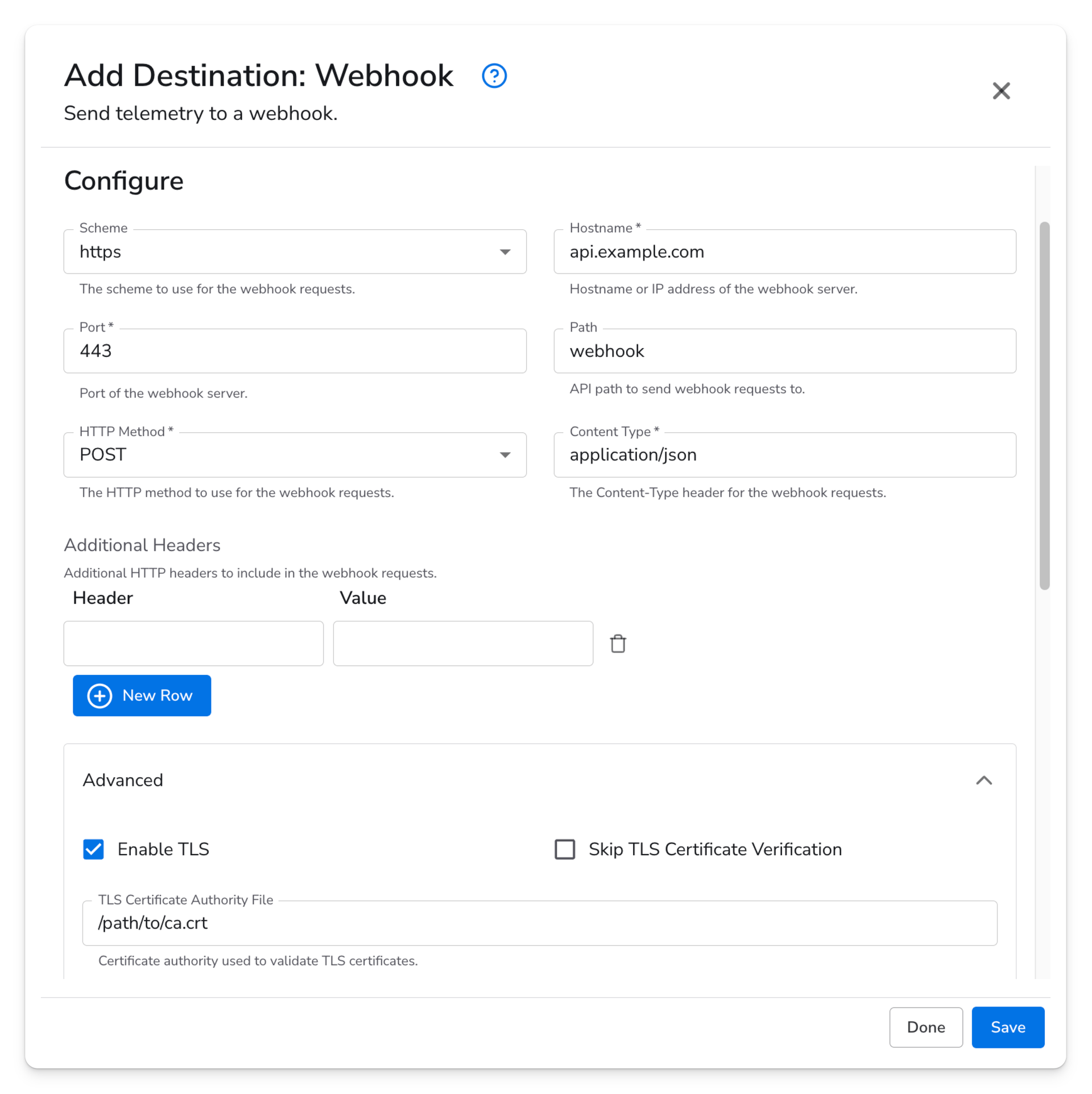

observIQ docs - Webhook Destination - image 1

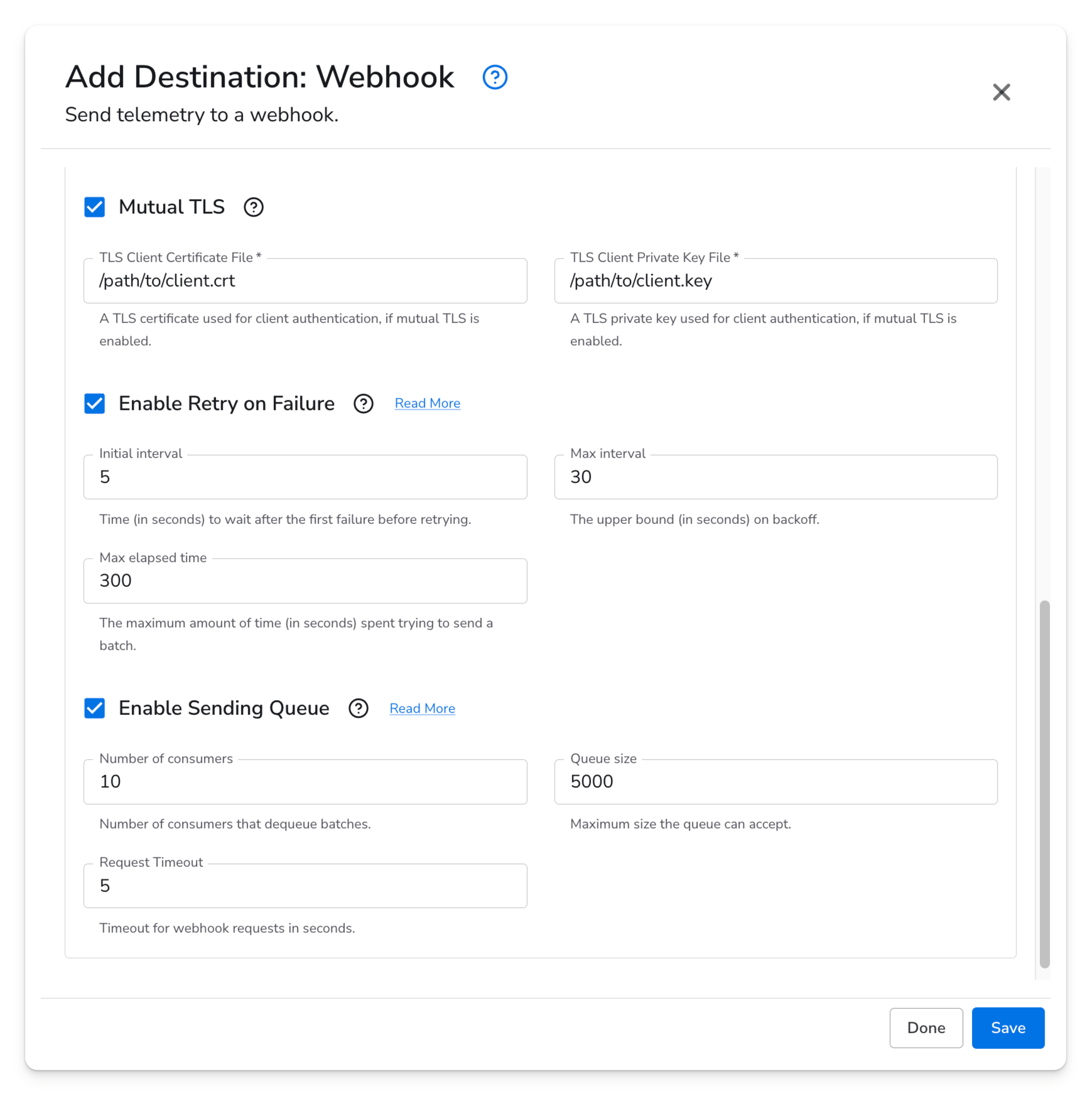

observIQ docs - Webhook Destination - image 2

Standalone Destination

yaml

1apiVersion: bindplane.observiq.com/v1
2kind: Destination
3metadata:
4  id: webhook
5  name: webhook
6spec:
7  type: webhook
8  parameters:
9    - name: scheme
10      value: https
11    - name: hostname
12      value: api.example.com
13    - name: port
14      value: '443'
15    - name: path
16      value: webhook
17    - name: enable_tls
18      value: 'true'
19    - name: skip_tls_verify
20      value: 'false'
21    - name: tls_ca_file
22      value: '/path/to/ca.crt'
23    - name: mutual_tls
24      value: 'true'
25    - name: tls_client_cert_file
26      value: '/path/to/client.crt'
27    - name: tls_client_key_file
28      value: '/path/to/client.key'

Notes

The webhook destination sends data in JSON format
Non-2xx HTTP responses are treated as errors
Connection timeouts are handled according to the configured timeout settings
